LENTITUDO

Paro

Flat constructum-in adscendens type

  • Clamping vim 1.25Kn
  • Tensio vi 5Kn
  • Repetitur positioning accuracy <0.005mm
  • Diameter 45mm, totalis crassitudine 20mm, pondus 0.15kg
  • Flat constructum-in adscendens type
  • Flat constructum-in adscendens type
  • Flat constructum-in adscendens type
Delineatio singularis
  • Flat constructum-in adscendens type
  • Flat constructum-in adscendens type
  • Flat constructum-in adscendens type
Contacta nos
Suzhou Set Industrial Equipment Ratio Co., Ltd. Parametri producti Suzhou Set Industrial Equipment Ratio Co., Ltd. Delineatio Suzhou Set Industrial Equipment Ratio Co., Ltd. Deductio datorum Suzhou Set Industrial Equipment Ratio Co., Ltd. Accessoria pertinentia
Conspectus Producti

Thread constructum-in ascendens diameter 45mm, totalis crassitudine 20mm, pondus 0.15kg est a pressura constructum-in ascendens typus of parva nulla positio, reserata aeris pressura, vere mechanica densis.
Repetita positioning accuracy <0.005mm, una positioner clamping vim 1.25Kn, tensio vi 5Kn.
Diversa ex traditional constructum-in installation modus, installation modus huius positioni installed per screw gyrationis, quod est apta parva et leve operantes conditionibus tolendis velox change.

Flat constructum-in adscendens type
Proprietates Producti

  • Apta tractantem, automation industria;

Suzhou Set Industrial Equipment Ratio Co., Ltd.

  • Apta non-metallum cutting Fields.

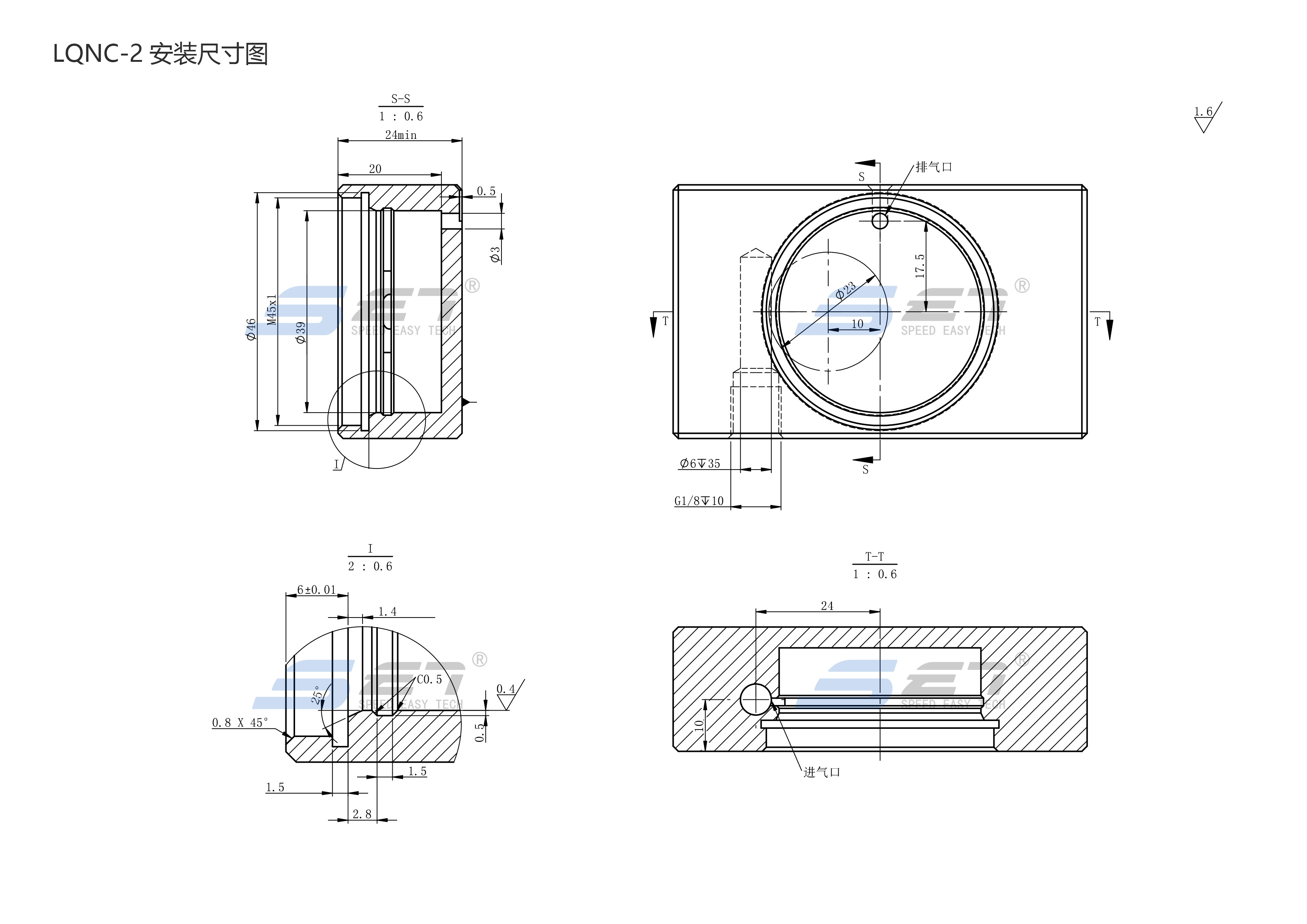

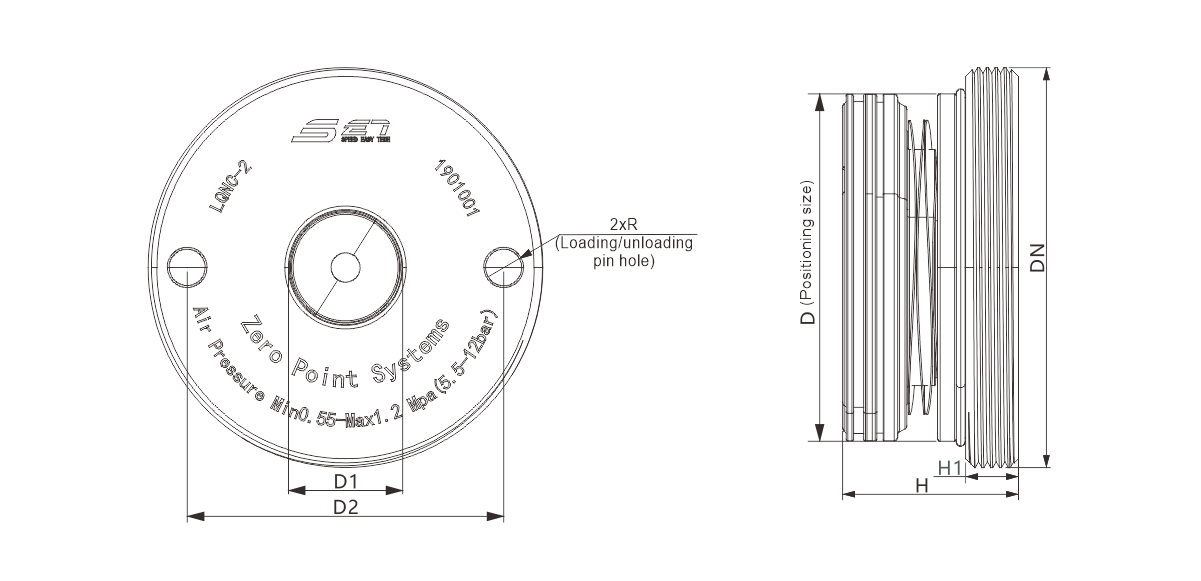

Diagramma dimensionum producti

Ut numerus Unlocking modum

Clamping vim (K)

Tensio vi (KN)

Caeli

Pondus (kg)

LQNC-II

Atmosphaerica pressura

1.25

5

√

0.15

Ut numerus

Dn

Deg

(H6)

Ød1

D2

H

H1

(± 0.005)

Ødr

LQNC-II

M45x1 39

13

36

20

6

4.1

  • Suzhou Set Industrial Equipment Ratio Co., Ltd.
  • Suzhou Set Industrial Equipment Ratio Co., Ltd.

Flat constructum-in adscendens type

  1. Thread constructum-in ascendens diameter 45mm, totalis crassitudine 20mm, pondus 0.15kg est a pressura constructum-in ascendens typus of parva nulla positio, reserata aeris pressura, vere mechanica densis.
  2. Repetita positioning accuracy <0.005mm, una positioner clamping vim 1.25Kn, tensio vi 5Kn.
  3. Diversa ex traditional constructum-in installation modus, installation modus huius positioni installed per screw gyrationis, quod est apta parva et leve operantes conditionibus tolendis velox change.
Informationes publicae
Suzhou Set Industrial Equipment Ratio Co., Ltd. Omnes Suzhou Set Industrial Equipment Ratio Co., Ltd. 3D Model Diagram Suzhou Set Industrial Equipment Ratio Co., Ltd. Institutionem disciplinam Suzhou Set Industrial Equipment Ratio Co., Ltd. Usor manual Suzhou Set Industrial Equipment Ratio Co., Ltd. Sample libri
Suzhou Set Industrial Equipment Ratio Co., Ltd. Typus Indicis Novissimae renovationes
De nobis Ex Sinis Veniens,
Mercatus ad Mundum.
Suzhou SET Industrial Equipment System Co.,Ltd. Est negotium privatum nationale technologiae provectae quod investigationem et progressionem, designum, productionem, venditionem, et servitium post-venditionem integrat. In designo et fabricatione systematum positionis puncti zero, systematum prehensionis, systematum prehensionis, et instrumentorum non consuetorum incumbit, et clientibus producta, servitia, et solutiones systematicas tutas, fidas, et efficaces praebere debet. SET Instrumenta Industrialia Est Venditor Sinensis Flat constructum-in adscendens type Fabricatores et Flat constructum-in adscendens type Officina, Offerimus Flat constructum-in adscendens type Venale.
