Est reserata per Gas pressura et mechanice clausum per ver.
Cum unlocking attractio Portus, locator est reserata et lance potest removeri; Cum reserans in pressura subsidio portum, locator est sui densis et non est opus ad semper coniungere pressura fons in usu.
Repetita positioning accuracy ≤0.005mm, una positioner clamping vim 17kn, tensio vi 55kn. Conventus pars facile install.
Usu temperatus rhoncus est -20 ℃ ~ LXXX ℃. Idoneam ad metallum vel non-metallum secare Fields.
Gas pressura reserat, vere mechanica clausum;
Repetitur positioning accurate ≤ 0.005mm;
Et basis laminam usus durante installation est tenuior et levius in crassess.
Materiam: ingravatum immaculatam ferro;
Conventus pars et facile install;
| Ut numerus | Unlocking modum | Clamping vim (K) | Tensio vi (KN) | Caeli | Pondus (kg) |
|---|---|---|---|---|---|
| Lqfld, X | Gas pressura | 10 | 25 | √ | 4.3 |
| Lqfld, XX | Gas pressura | 17 | 55 | √ | 8.8 |
| Lqfls, X | Gas pressura | 10 | 25 | √ | 4.3 |
| Lqfls, XX | Gas pressura | 17 | 55 | √ | 8.8 |

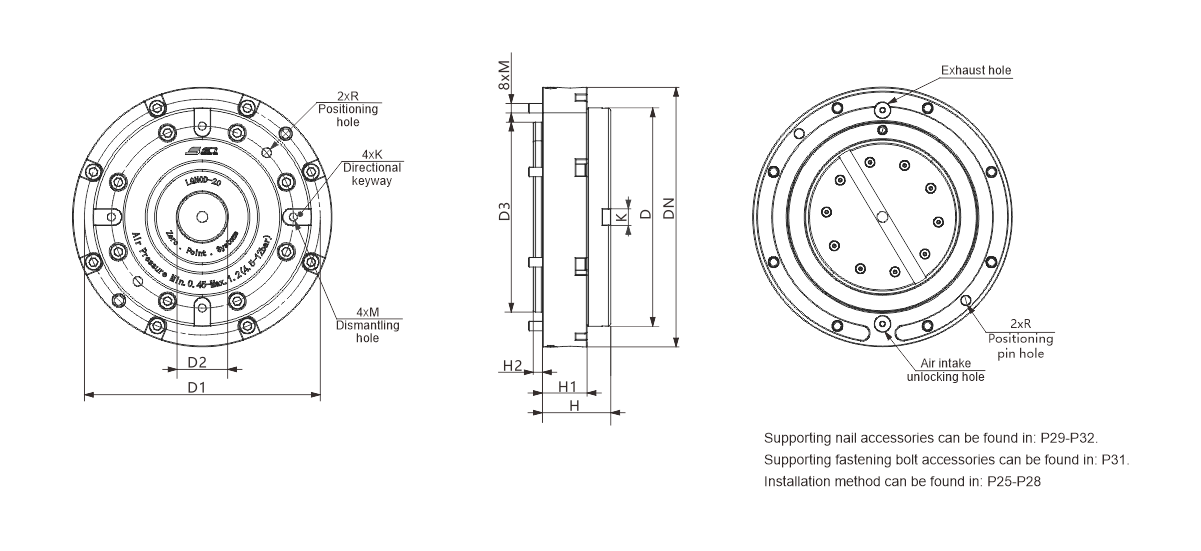

| Ut numerus | Ødn | Deg | Ød1 | Ød2 | Ød3 (H7) | H | H1 | H2 | M | Ør | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lqfld, X | 140 | 112 | 127 | 22 | 100 | 35.5 | 25 | 5.8 | M6 | 8 | 8.14 |
| Lqfld, XX | 164 | 138 | 149 | 32 | 120 | 43.2 | 28.2 | 5.8 | M6 | 6 | 10.14 |
| Lqfls, X | 140 | 112 | 127 | 22 | 100 | 35.5 | 25 | 5.8 | M6 | 8 | / |
| Lqfls, XX | 164 | 138 | 149 | 32 | 120 | 43.2 | 28.2 | 5.8 | M6 | 6 | / |
Flange Type installation Type
