Altitudo est 11.56mm et pondus 60g. Corpus extinguetur et temperari ferrosoferrric boundii amet.
Et repetita positioning accuracy <± 0.013mm.

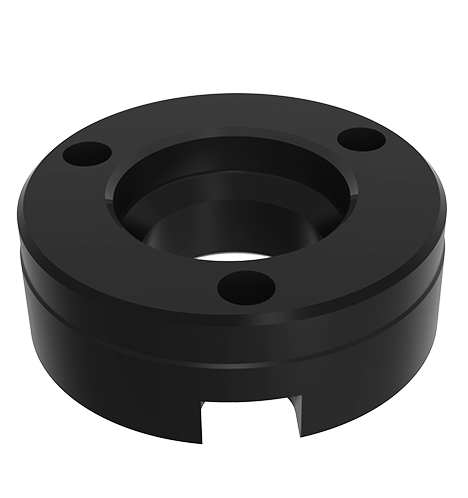

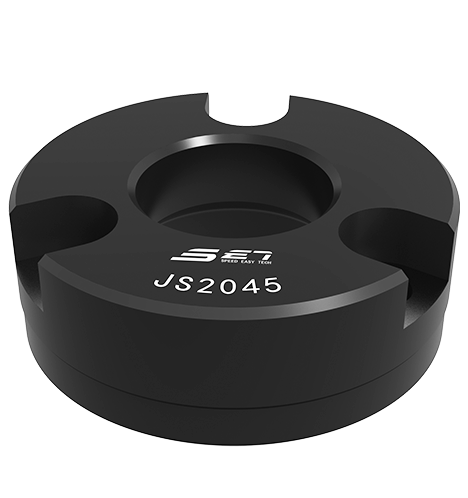

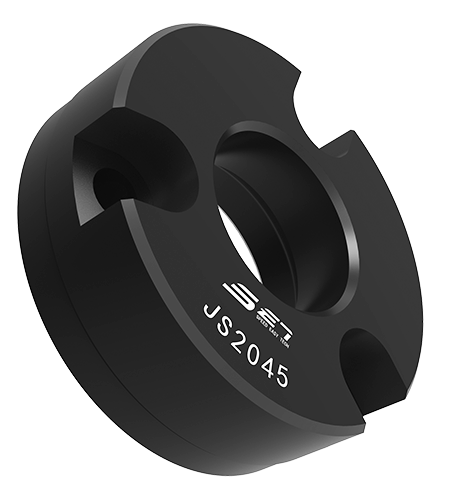

Posuit positionis sleeve in Fibulae switch tabula, cooperantem cum pila clausum et acceptatio sleeve.
P.s. Repetita positioning accurate positum in positioning sleeve. Cum per duo prima-gradu positioning manicas, si centro ad centrum spacing ex duobus foraminibus est intra tolerantia range de ± 0.005mm, deinde repetita positioning accurate potest intra ± 0.013mm.
Corpus: Exstinguere et temperavit Ferosoferric cadmiae film.
| Dimensionem numerum | Ød1 | Ød2 | Ød3 | Ød4 | H | H1 | M | Øn | Pondus (G) |
|---|---|---|---|---|---|---|---|---|---|
| JS1637 | 37 | 16 | 4.5 | 20.65 | 11.56 | 4.6 | 7.6 | 29 | 60 |
| Js2045 | 45 | 20 | 5.4 | 24.77 | 15.8 | 6.2 | 9.5 | 35 | 140 |
| Js2555 | 55 | 25 | 6.4 | 30.35 | 19.94 | 7.3 | 11 | 42 | 200 |
| JS3060 | 60 | 30 | 6.4 | 36.2 | 21.77 | 7.3 | 11 | 48 | 305 |
| Dimensionem numerum | Ød1 | Ød2 | Ød3 | Ød4 | Crassitudine compositum laminam h (minimum) | H1 | H2 | H3 | M |
|---|---|---|---|---|---|---|---|---|---|
| JS1637 | 37 | 21 | 14.5 | 37 | 20 | 11.91 | 3 | 20 | M4 * VII |
| Js2045 | 45 | 21 | 17.5 | 45 | 25 | 16.21 | 3 | 25 | M5 * IX |
| Js2555 | 55 | 25.5 | 21 | 55 | 25 | 20.32 | 3 | 25 | M6 * X |
| JS3060 | 60 | 30.5 | 24 | 60 | 30 | 22.15 | 3 | 30 | M6 * 11 |
