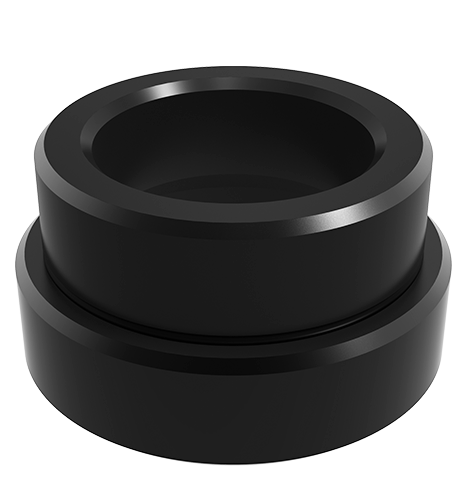

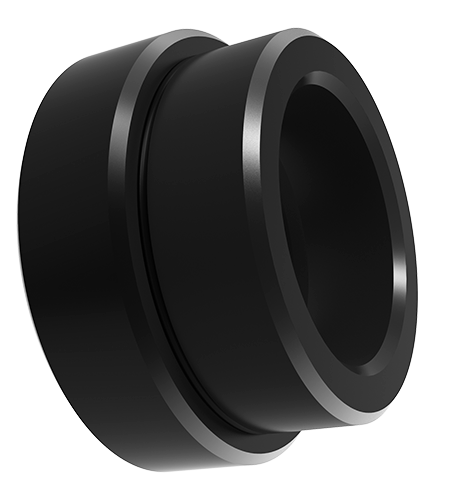

Altitudo 12.1mm et pondus 20g. Corpus extinguetur et temperari ferrosoferrric boundii amet.
Et repetita positioning accuracy <± 0.013mm.
Posuit positionis sleeve in Fibulae switch tabula, cooperantem cum pila clausum et acceptatio sleeve.
P.s. Repetita positioning accurate positum in positioning sleeve. Cum per duo prima-gradu positioning manicas, si centro ad centrum spacing ex duobus foraminibus est intra tolerantia range de ± 0.005mm, deinde repetita positioning accurate potest intra ± 0.013mm.
Corpus: Exstinguere et temperavit Ferosoferric cadmiae film.
| Dimensionem numerum | Ød1 | Ød2 | Ød3 | Ød4 | H | H1 | Pondus (G) |
|---|---|---|---|---|---|---|---|
| Jt1629 | 22 | 16 | 20.65 | 18.6 | 12.1 | 7.24 | 20 |

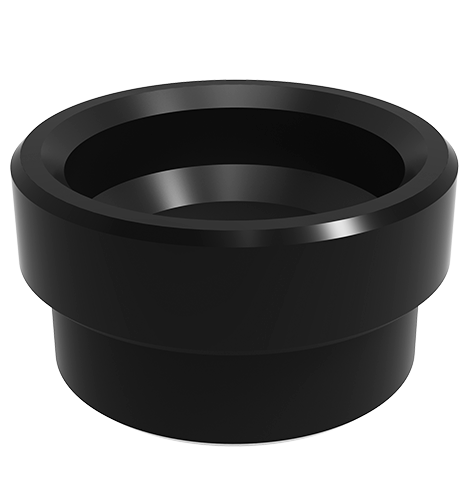

| Jt2032 | 28 | 20 | 24.77 | 32.2 | 17.1 | 8.4 | 50 |
| Jt2540 | 35 | 25 | 30.35 | 40.2 | 21 | 10.3 | 80 |
| Jt3048 | 42 | 30 | 36.2 | 48.2 | 21.8 | 10.7 | 125 |
| Dimensionem numerum | Ø | Øn | Crassitudine compositum laminam h (minimum) | L1 |
|---|---|---|---|---|
| Jt1629 | 22 | 29 | 20 | 7.24 |
| Jt2032 | 28 | 33 | 25 | 8.74 |
| Jt2540 | 35 | 41 | 25 | 10.54 |
| Jt3048 | 42 | 49 | 30 | 10.95 |
Si nostris productis interest, nobiscum consule.
